Hyperledger Fabric Architecture Reference¶
Kubernetes¶
Peer Nodes¶
The following diagram shows how Hyperledger Fabric peer nodes will be deployed on your Kubernetes instance.
Figure: Hyperledger Fabric Kubernetes Deployment - Peers
Notes:
- Pods are shown in blue in the diagram.
- Each peer pod will have both
fabric-peer
andfabric-couchdb
containers running. Since they are in the same pod, Kubernetes always schedules them on the same VM and they can communicate to each other through localhost. This guarantees minimal latency between them. - Host VM’s Docker socket is attached to peer pod so it can create chaincode containers. Kubernetes is not aware of these containers.
- TLS and MSP certificates are mounted as in-memory volumes from the Vault.
- The storage uses a Kubernetes Persistent Volume.
Orderer Nodes¶
The following diagram shows how Hyperledger Fabric orderer will be deployed on your Kubernetes instance.

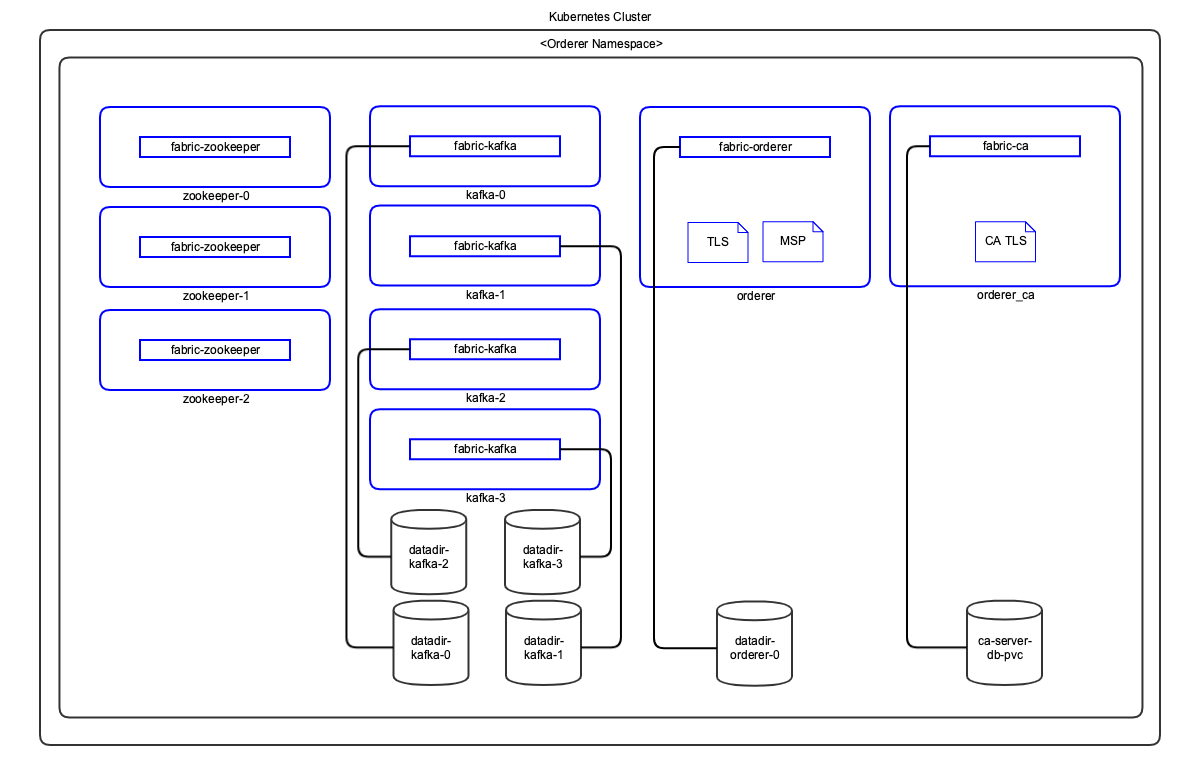

Figure: Hyperledger Fabric Kubernetes Deployment - Orderer
Notes:
- Pods are shown in blue in the diagram.
- TLS and MSP certificates are mounted as in-memory volumes from the Vault.
- The storage uses a Kubernetes Persistent Volume.
Components¶

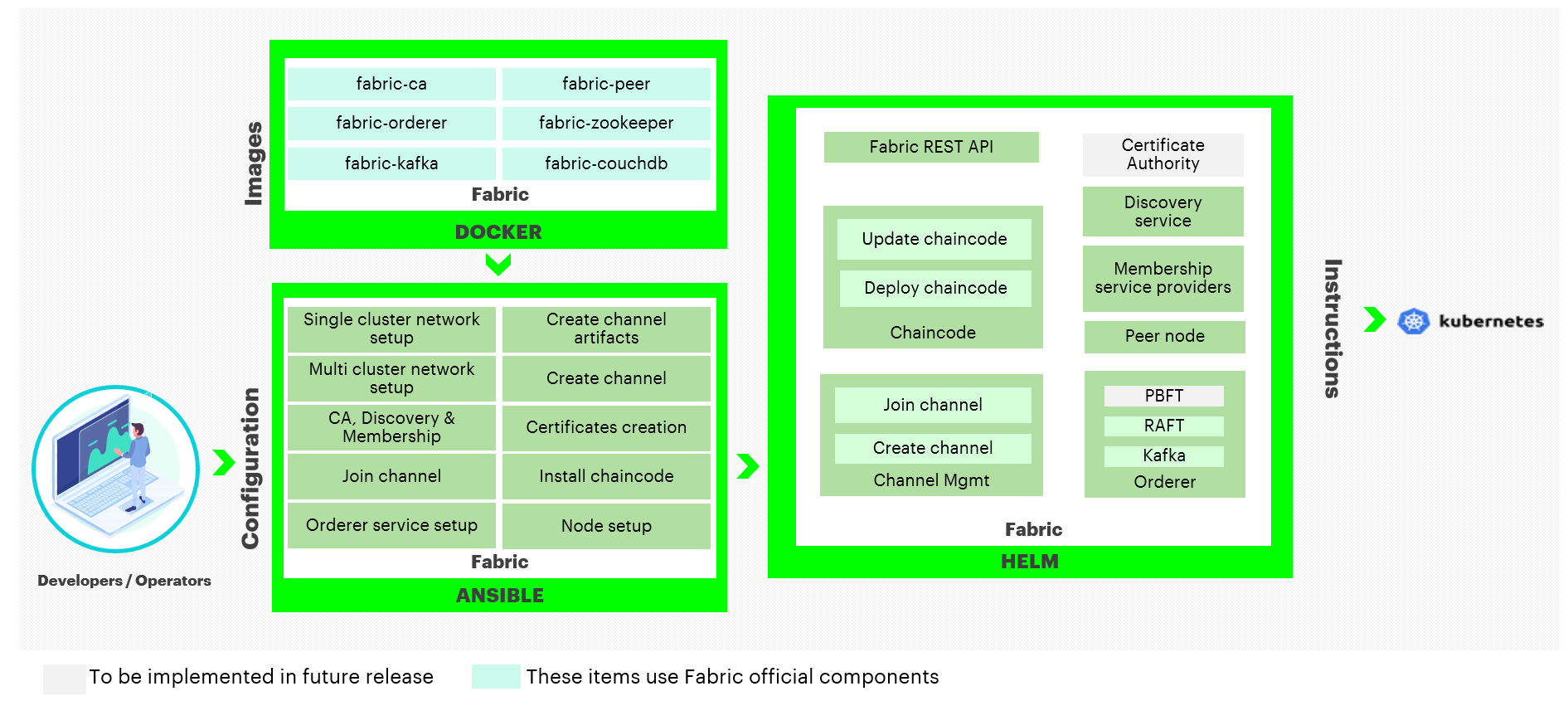

Figure: Hyperledger Fabric Components
Docker Images¶
The Blockchain Automation Framework uses the officially published Hyperledger Fabric Docker images from hub.docker.com. The following Hyperledger Fabric Docker Images are used by the Blockchain Automation Framework.
- fabric-ca - Hyperledger Fabric Certificate Authority
- fabric-couchdb - CouchDB for Hyperledger Fabric Peer
- fabric-kafka - Kafka for Hyperledger Fabric Orderer
- fabric-orderer - Hyperledger Fabric Orderer
- fabric-peer - Hyperledger Fabric Peer
- fabric-zookeeper - Zookeeper for Hyperledger Fabric Orderer
Ansible Playbooks¶
Detailed information on ansible playbooks can be referred here and the execution process can be referred here
Helm Charts¶
Detailed information on helm charts can be referred here
Vault Configuration¶
The Blockchain Automation Framework stores their crypto
and credentials
immediately within the secret secrets engine.
Crypto Material Path | Credentials Path |
---|---|
secret/crypto |
secret/credentials |
secret/credentials/ordererOrganizations/<orderer-org>/ca
- Contains password for the Orderer CA Bootstrap user in the format:
user="${ORDERER_NAMESPACE}-adminpw
secret/credentials/peerOrganizations/<org1>/ca
- Contains password for the Org Peers CA Bootstrap user in the format:
user="${NAMESPACE}-adminpw
secret/credentials/peerOrganizations/<org1>/<peern>couchdb
- Contains the password for the Peer’s CouchDB user in the format:
pass="${NAMESPACE}-peer-${n}-adminpw
The complete Certificate and key paths in the vault can be referred here.
