Configuration file specification: Hyperledger-Fabric¶
A network.yaml file is the base configuration file designed in the Blockchain Automation Framework for setting up a Fabric DLT network. This file contains all the information related to the infrastructure and network specifications. Below shows its structure.
Before setting up a Fabric DLT/Blockchain network, this file needs to be updated with the required specifications.A sample configuration file is provided in the repo path:platforms/hyperledger-fabric/configuration/samples/network-fabricv2.yaml

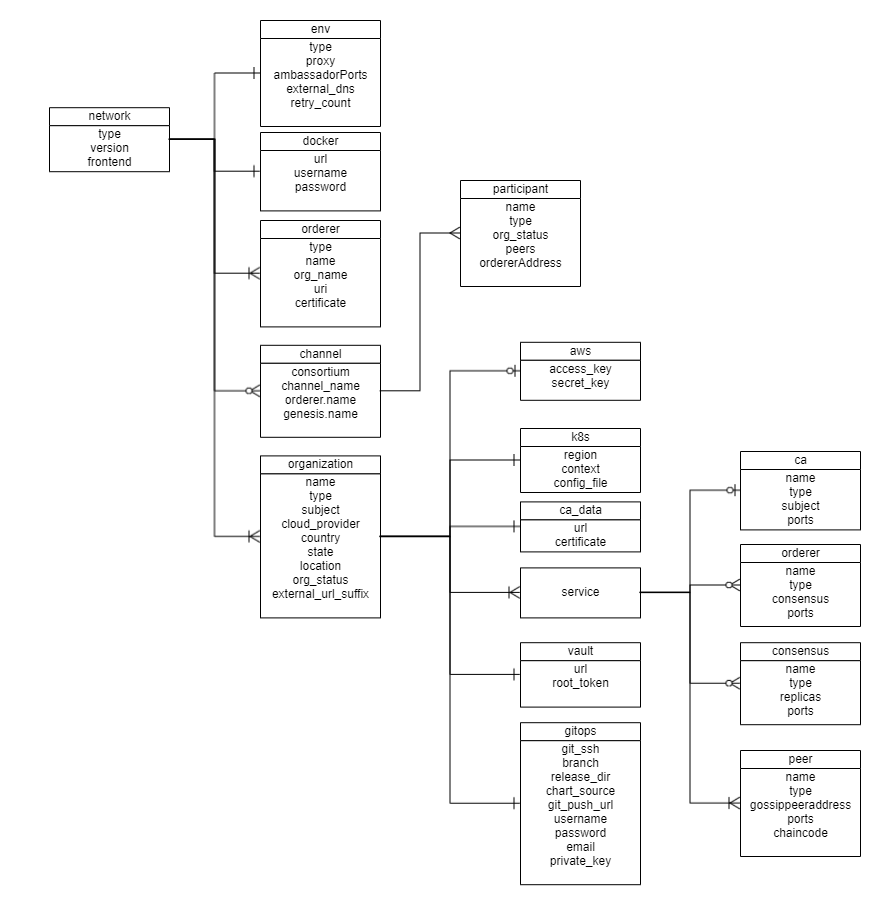

The configurations are grouped in the following sections for better understanding.
- type
- version
- docker
- frontend
- env
- orderers
- channels
- organizations

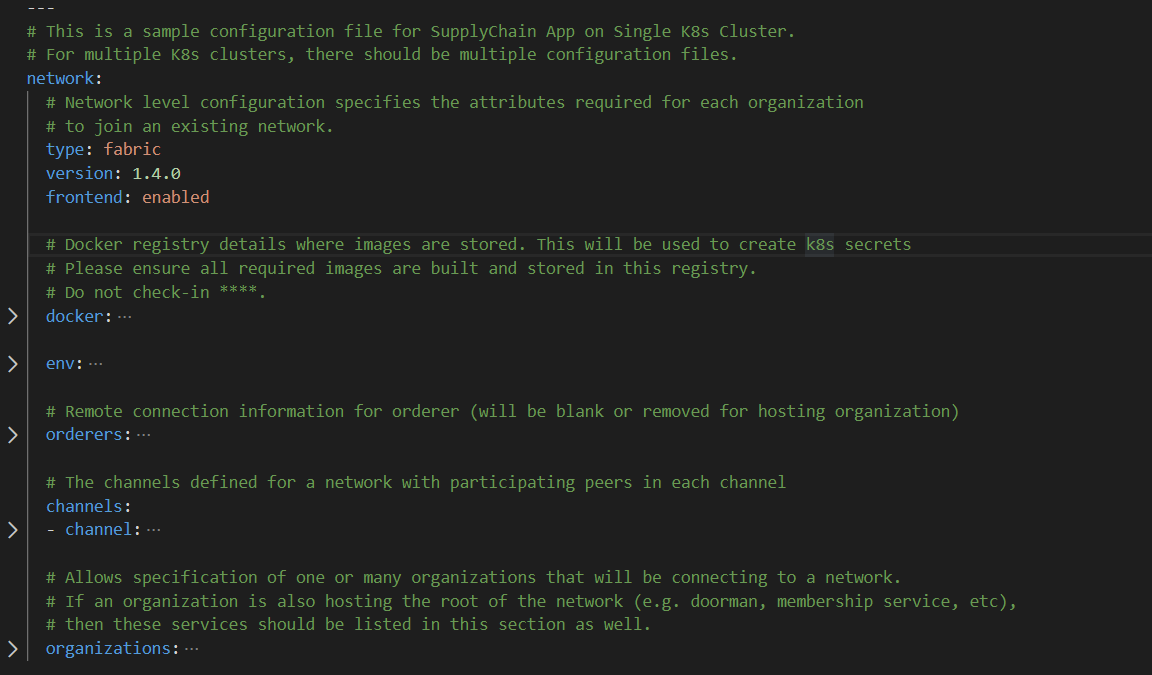

Here is the snapshot from the sample configuration file
The sections in the sample configuration file are
type defines the platform choice like corda/fabric, here in the example its Fabric
version defines the version of platform being used. The current Fabric version support is 1.4.0, 1.4.4 and 2.0.0
frontend is a flag which defines if frontend is enabled for nodes or not. Its value can only be enabled/disabled. This is only applicable if the sample Supplychain App is being installed.
env section contains the environment type and additional (other than 8443) Ambassador port configuration. Vaule for proxy field under this section can be ‘ambassador’ or ‘haproxy’
The snapshot of the env section with example value is below
env:
type: "env_type" # tag for the environment. Important to run multiple flux on single cluster
proxy: haproxy # values can be 'haproxy' or 'ambassador'
ambassadorPorts: 15010,15020 # is valid only if proxy='ambassador'
retry_count: 100 # Retry count for the checks
external_dns: enabled # Should be enabled if using external-dns for automatic route configuration
The fields under env section are
| Field | Description |
|---|---|
| type | Environment type. Can be like dev/test/prod. |
| proxy | Choice of the Cluster Ingress controller. Currently supports 'haproxy' only as 'ambassador' has not been implemented for Fabric |
| ambassadorPorts | Any additional Ambassador ports can be given here; must be comma-separated without spaces like 10010,10020. This is only valid if proxy: ambassador |
| retry_count | Retry count for the checks. |
| external_dns | If the cluster has the external DNS service, this has to be set enabled so that the hosted zone is automatically updated. |
docker section contains the credentials of the repository where all the required images are built and stored.
The snapshot of the docker section with example values is below
# Docker registry details where images are stored. This will be used to create k8s secrets
# Please ensure all required images are built and stored in this registry.
# Do not check-in docker_password.
docker:
url: "docker_url"
username: "docker_username"
password: "docker_password"
The fields under docker section are
| Field | Description |
|---|---|
| url | Docker registry url |
| username | Username credential required for login |
| password | Password credential required for login |
NOTE: Please follow these instructions to build and store the docker images before running the Ansible playbooks.
orderers section contains a list of orderers with variables which will expose it for the network.
The snapshot of the orderers section with example values is below
# Remote connection information for orderer (will be blank or removed for orderer hosting organization)
orderers:
- orderer:
type: orderer
name: orderer1
org_name: supplychain #org_name should match one organization definition below in organizations: key
uri: orderer1.org1ambassador.blockchaincloudpoc.com:8443 # Can be external or internal URI for orderer which should be reachable by all peers
certificate: /home/blockchain-automation-framework/build/orderer1.crt # Ensure that the directory exists
- orderer:
type: orderer
name: orderer2
org_name: supplychain #org_name should match one organization definition below in organizations: key
uri: orderer2.org1ambassador.blockchaincloudpoc.com:8443 # Can be external or internal URI for orderer which should be reachable by all peers
certificate: /home/blockchain-automation-framework/build/orderer2.crt # Ensure that the directory exists
The fields under the each orderer are
| Field | Description |
|---|---|
| name | Name of the orderer service |
| type | For Fabric, orderer is the only valid type of orderers. |
| org_name | Name of the organization to which this orderer belong to |
| uri | Orderer URL |
| certificate | Path to orderer certificate. For inital network setup, ensure that the directory is present, the file need not be present. For adding a new organization, ensure that the file is the crt file of the orderer of the existing network. |
The channels sections contains the list of channels mentioning the participating peers of the organizations.
The snapshot of channels section with its fields and sample values is below
# The channels defined for a network with participating peers in each channel
channels:
- channel:
consortium: SupplyChainConsortium
channel_name: AllChannel
orderer:
name: supplychain
participants:
- organization:
name: carrier
type: creator # creator organization will create the channel and instantiate chaincode, in addition to joining the channel and install chaincode
peers:
- peer:
name: peer0
gossipAddress: peer0.carrier-net.org3ambassador.blockchaincloudpoc.com:8443 # External or internal URI of the gossip peer
ordererAddress: orderer1.org1ambassador.blockchaincloudpoc.com:8443 # External or internal URI of the orderer
- organization:
name: store
type: joiner # joiner organization will only join the channel and install chaincode
peers:
- peer:
name: peer0
gossipAddress: peer0.store-net.org3ambassador.blockchaincloudpoc.com:8443
ordererAddress: orderer1.org1ambassador.blockchaincloudpoc.com:8443
- organization:
name: warehouse
type: joiner
peers:
- peer:
name: peer0
gossipAddress: peer0.warehouse-net.org2ambassador.blockchaincloudpoc.com:8443
ordererAddress: orderer1.org1ambassador.blockchaincloudpoc.com:8443
- organization:
name: manufacturer
type: joiner
peers:
- peer:
name: peer0
gossipAddress: peer0.manufacturer-net.org2ambassador.blockchaincloudpoc.com:8443
ordererAddress: orderer1.org1ambassador.blockchaincloudpoc.com:8443
genesis:
name: OrdererGenesis
The fields under the channel are
| Field | Description |
|---|---|
| consortium | Name of the consortium, the channel belongs to |
| channel_name | Name of the channel |
| genesis.name | Name of the genesis block |
| orderer.name | Organization name to which the orderer belongs |
| participants | Contains list of organizations participating in the channel |
Each organization field under participants field of the channel contains the following fields
| Field | Description |
|---|---|
| name | Organization name of the peer participating in the channel |
| type | This field can be creator/joiner of channel |
| ordererAddress | URL of the orderer this peer connects to |
| peer.name | Name of the peer |
| peer.gossipAddress | Gossip address of the peer |
The organizations section contains the specifications of each organization.In the sample configuration example, we have five organization under the organizations section
The snapshot of an organization field with sample values is below
organizations:
# Specification for the 1st organization. Each organization maps to a VPC and a separate k8s cluster
- organization:
name: supplychain
country: UK
state: London
location: London
subject: "O=Orderer,L=51.50/-0.13/London,C=GB"
type: orderer
external_url_suffix: org1ambassador.blockchaincloudpoc.com
cloud_provider: aws # Options: aws, azure, gcp, minikube
Each organization under the organizations section has the following fields.
| Field | Description |
|---|---|
| name | Name of the organization |
| country | Country of the organization |
| state | State of the organization |
| location | Location of the organization |
| subject | Subject format can be referred at OpenSSL Subject |
| type | This field can be orderer/peer |
| external_url_suffix | Public url suffix of the cluster. |
| ca_data | Contains the certificate authority url and certificate path; This has not been implemented yet |
| cloud_provider | Cloud provider of the Kubernetes cluster for this organization. This field can be aws, azure, gcp or minikube |
| aws | When the organization cluster is on AWS |
| k8s | Kubernetes cluster deployment variables. |
| vault | Contains Hashicorp Vault server address and root-token in the example |
| gitops | Git Repo details which will be used by GitOps/Flux. |
| services | Contains list of services which could ca/peer/orderers/concensus based on the type of organization |
For the aws and k8s field the snapshot with sample values is below
aws:
access_key: "<aws_access_key>" # AWS Access key, only used when cloud_provider=aws
secret_key: "<aws_secret>" # AWS Secret key, only used when cloud_provider=aws
# Kubernetes cluster deployment variables.
k8s:
region: "<k8s_region>"
context: "<cluster_context>"
config_file: "<path_to_k8s_config_file>"
The aws field under each organization contains: (This will be ignored if cloud_provider is not ‘aws’)
| Field | Description |
|---|---|
| access_key | AWS Access key |
| secret_key | AWS Secret key |
The k8s field under each organization contains
| Field | Description |
|---|---|
| region | Region where the Kubernetes cluster is deployed, e.g : eu-west-1 |
| context | Context/Name of the cluster where the organization entities should be deployed |
| config_file | Path to the kubernetes cluster configuration file |
For gitops fields the snapshot from the sample configuration file with the example values is below
# Git Repo details which will be used by GitOps/Flux.
gitops:
git_ssh: "git@github.com/<username>/blockchain-automation-framework.git" # Gitops ssh url for flux value files
branch: "<branch_name>" # Git branch where release is being made
release_dir: "platforms/hyperledger-fabric/releases/dev" # Relative Path in the Git repo for flux sync per environment.
chart_source: "platforms/hyperledger-fabric/charts" # Relative Path where the Helm charts are stored in Git repo
git_push_url: "github.com/<username>/blockchain-automation-framework.git" # without https://
username: "<username>" # Git Service user who has rights to check-in in all branches
password: "<password>" # Git Server user password/personal token
email: "<git_email>" # Email to use in git config
private_key: "<path to gitops private key>"
The gitops field under each organization contains
| Field | Description |
|---|---|
| git_ssh | SSH url of the repository where flux should be synced |
| branch | Branch of the repository where the Helm Charts and value files are stored |
| release_dir | Relative path where flux should sync files |
| chart_source | Relative path where the helm charts are stored |
| git_push_url | Gitops https URL for git push like "github.com/hyperledger-labs/blockchain-automation-framework.git" |
| username | Username which has access rights to read/write on repository |
| password | Password of the user which has access rights to read/write on repository |
| Email of the user to be used in git config | |
| private_key | Path to the private key file which has write-access to the git repo |
The services field for each organization under organizations section of Fabric contains list of services which could be ca/orderers/consensus/peers based on if the type of organization.
Each organization will have a ca service under the service field. The snapshot of ca service with example values is below
# Services maps to the pods that will be deployed on the k8s cluster
# This sample is an orderer service and includes a zk-kafka consensus
services:
ca:
name: ca
subject: "/C=GB/ST=London/L=London/O=Orderer/CN=ca.supplychain-net"
type: ca
grpc:
port: 7054
The fields under ca service are
| Field | Description |
|---|---|
| name | Certificate Authority service name |
| subject | Subject format can be referred at OpenSSL Subject |
| type | Type must be ca for certification authority |
| grpc.port | Grpc port number |
Each organization with type as peer will have a peers service. The snapshot of peers service with example values is below
peers:
- peer:
name: peer0
type: anchor # This can be anchor/nonanchor. Atleast one peer should be anchor peer.
gossippeeraddress: peer0.manufacturer-net:7051 # Internal Address of the other peer in same Org for gossip, same peer if there is only one peer
grpc:
port: 7051
events:
port: 7053
couchdb:
port: 5984
restserver: # This is for the rest-api server
targetPort: 20001
port: 20001
expressapi: # This is for the express api server
targetPort: 3000
port: 3000
chaincode:
name: "chaincode_name" #This has to be replaced with the name of the chaincode
version: "chaincode_version" #This has to be replaced with the version of the chaincode
maindirectory: "chaincode_main" #The main directory where chaincode is needed to be placed
repository:
username: "git_username" # Git Service user who has rights to check-in in all branches
password: "git_password"
url: "github.com/hyperledger-labs/blockchain-automation-framework.git"
branch: develop
path: "chaincode_src" #The path to the chaincode
arguments: 'chaincode_args' #Arguments to be passed along with the chaincode parameters
endorsements: "" #Endorsements (if any) provided along with the chaincode
The fields under peer service are
| Field | Description |
|---|---|
| name | Name of the peer |
| type | Type can be anchor and nonanchor for Peer |
| gossippeeraddress | Gossip address of the peer |
| grpc.port | Grpc port |
| events.port | Events port |
| couchdb.port | Couchdb port |
| restserver.targetPort | Restserver target port |
| restserver.port | Restserver port |
| expressapi.targetPort | Express server target port |
| expressapi.port | Express server port |
| chaincode.name | Name of the chaincode |
| chaincode.version | Version of the chaincode |
| chaincode.maindirectory | Path of main.go file |
| chaincode.repository.username | Username which has access to the git repo containing chaincode |
| chaincode.repository.password | Password of the user which has access to the git repo containing chaincode |
| services.peer.chaincode.repository.url | URL of the git repository containing the chaincode |
| chaincode.repository.branch | Branch in the repository where the chaincode resides |
| chaincode.repository.path | Path of the chaincode in the repository branch |
| chaincode.arguments | Arguments to the chaincode |
| chaincode.endorsements | This could be anchor/non-anchor |
The organization with orderer type will have concensus service. The snapshot of consensus service with example values is below
consensus:
name: kafka
type: broker
replicas: 4
grpc:
port: 9092
The fields under consensus service are
| Field | Description |
|---|---|
| name | Name of the Consensus service |
| type | Consensus service type, for example: broker |
| replicas | Replica count of the brokers |
| grpc.port | Grpc port of consensus service |
The organization with orderer type will have orderers service. The snapshot of orderers service with example values is below
orderers:
# This sample has multiple orderers as an example.
# You can use a single orderer for most production implementations.
- orderer:
name: orderer1
type: orderer
consensus: kafka
grpc:
port: 7050
- orderer:
name: orderer2
type: orderer
consensus: kafka
grpc:
port: 7050
The fields under orderer service are
| Field | Description |
|---|---|
| name | Name of the Orderer service |
| type | This type must be orderer |
| consensus | Consensus type, for example: kafka, raft |
| grpc.port | Grpc port of orderer |
| ca_data.url | Orderer url |
| ca_data.certificate | Path to CA certificate ** |
\ ** feature is in future scope
